当前位置: 首页 > 产品中心 > 其他设备 > HEQUAN晶体管焊接电源

HEQUAN晶体管焊接电源

产品详情

一、产品型号规格

Product model specification

●MDA-8000B 10000A标准型Standard 220V 60Hz电源 Source

●MDA-8000A 10000A标准型 Standard 110V 60Hz电源 Source

●MDB-4000B 5000A极性切换型Polarity switching type 220V 60Hz电源

●MDB-4000A 5000A极性切换型Polarity switching type 220V 60Hz电源

二、晶体管焊接电源特点

本公司生产的MDA.MDB系列焊接电源,采用精密型晶体管式焊接电源

Our MDA.MDB series welding power supply adopts precision transistor welding power supply

■ 焊接电源采用晶体管切换方式,能实现小型高效,高输出的精密焊接

Welding power supply adopts transistor switching mode, which can achieve small, efficient, high output precision welding

■ 本机采用3种焊接方式This machine adopts 3 welding methods:

●定电压焊接(-----):控制电极间的电压,电流量小,降低焊接时产生火花

Fixed voltage welding (-----): control the voltage between the electrodes, low flow rate, reduce the welding of sparks

●定电流焊接(-----),通过一定量的电流,与工件电阻无关,可稳定焊接

Fixed current welding (-----), through a certain amount of current, independent of the workpiece resistance, can stabilize the welding

●定电压.定电流焊接(-----):前部分焊接通过定电压,后部分定电流焊接

Fixed voltage. Fixed current welding (-----): the front part of the welding through the fixed voltage, the latter part of the fixed current welding

输出电流方向 Output current direction:

MDA-8000B电流从正极流向负极(单极性方式焊接),主要适用动力电池类

The MDA-8000B current flows from the positive electrode to the negative electrode (unipolar mode welding), mainly applicable to the power battery class

MDB-4000B(极性转换方式焊接),主要适用数码电池类

MDB-4000B (polar conversion mode welding), mainly suitable for digital batteries

■适合焊接范围:动力电池/数码电池/镍氢镍铬电池/电机转子/电子电气配件等

Suitable for welding range: power battery / digital battery / MH battery / motor rotor / electronic and electrical accessories, etc

■界面显示:本机为5寸触摸显示屏(DMT80480T050-16WT),易懂易操作,配自动化机器时可选

Interface display: this machine is a 5-inch touch display screen (DMT80480T050-16WT), easy to understand and easy to operate, optional when equipped with automatic machine

■焊接厚度:0.08-0.2MM镀镍或纯镍(0.15-0.2MM镍片建议开导流槽,0.2MM 以上镍片需要打凸点焊接)

Welding thickness: 0.08-0.2MM nickel plating or pure nickel (0.15-0.2MM nickel wafer recommended channel, nickel wafer above 0.2MM welding)

■焊接规范存储:焊接时可以进行更加灵活的选择规范焊接,输出不同规范的 焊接参数,列如:正极焊接电流2000A,负极需要2500A焊接电流,在自动焊接机中由自动化给出信号控制输出相应的焊接规范(对应的焊接电流),手动操作中需要通过切换控制信号可以实现输出不同的焊接电流

Welding specification storage: welding can be more flexible selection specification welding, output different specification welding parameters, such as: positive welding current 2000A, negative need 2500A welding current, in automatic welding machine control the output corresponding signal welding specification (welding current), manual operation need to switch control signal can output different welding current

■可设定预热电流,焊接电流和冷却,有效地解决了焊接过程中产生的喷溅和焊接结束后工件的淬火问题。二个放电脉冲可单独或任意组合使用。

The preheating current, welding current and cooling can effectively solve the problems caused during welding and quenching of workpiece after welding.Two discharge pulses can be used individually or in any combination.

■具有电流缓升/缓降功能:使用缓升/缓降功能可以避免焊接时产生喷溅,满足特殊材料焊接要求。

With the current slow rise / slow drop function: using the slow rise / slow drop function can avoid the splash during welding, and meet the welding requirements of special materials.

■安装使用方便:体积大大减小,整体设备轻巧,安装使用方便。

Easy to install and use: the volume is greatly reduced, the overall equipment is light, easy to install and use.

■故障诊断和自动保护功能:机器在工作过程中,控制器如检测到情况异常,会自动关闭输出并报警提示。

Fault diagnosis and automatic protection function: during the machine, the controller will automatically close the output and alarm.

■通讯接口:RS485/RS232

Communication Interface: RS485 / RS232

■独立的外接触摸显示屏接口:可选择外置7寸触摸显示屏

(DMT80480T070-18WT),通讯模式为RS485

Independent external contact touch display interface: optional external 7-inch touch display

(DMT80480T070-18WT), the communication mode is RS485

■点焊数据采集:可通过RS485 或RS232采集焊接数据

Spot welding data acquisition: The welding data can be collected via RS485 or RS232

■外部控制功能:可外接工控机/PLC控制、配合自动化机器生产

External control function: external industrial control machine / PLC control, cooperate with automatic machine production

■外形尺寸:L430MM*W185MM*H400MM

Overall dimensions: L430MM * W185MM * H400MM

■重量Weight:25KG

5.主功能设置 Main function settings

●进入功能区域

Enter the functional area

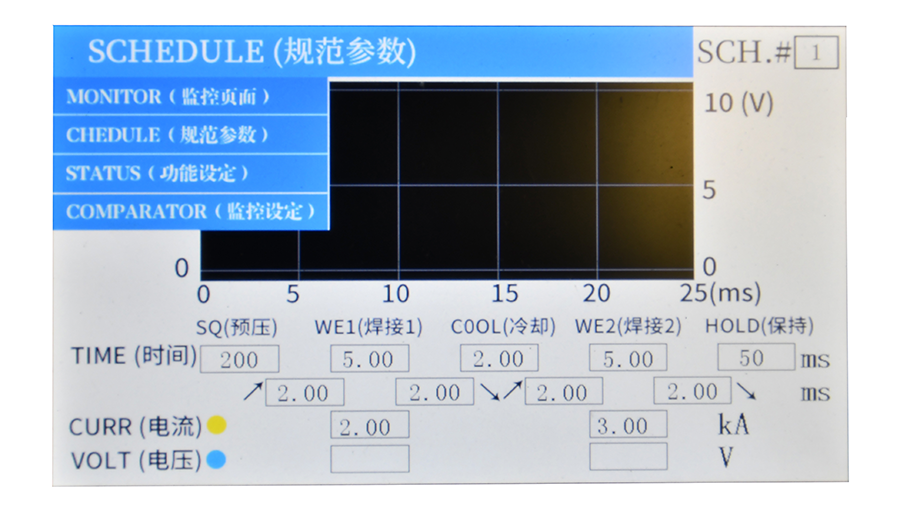

在任意页面点击上方蓝色位置都会跳出下拉菜单

Clicking the blue position above any page jumps the drop-down menu

在下拉菜单中选择需要进入的页面

Select the page required to enter in the drop-down menu

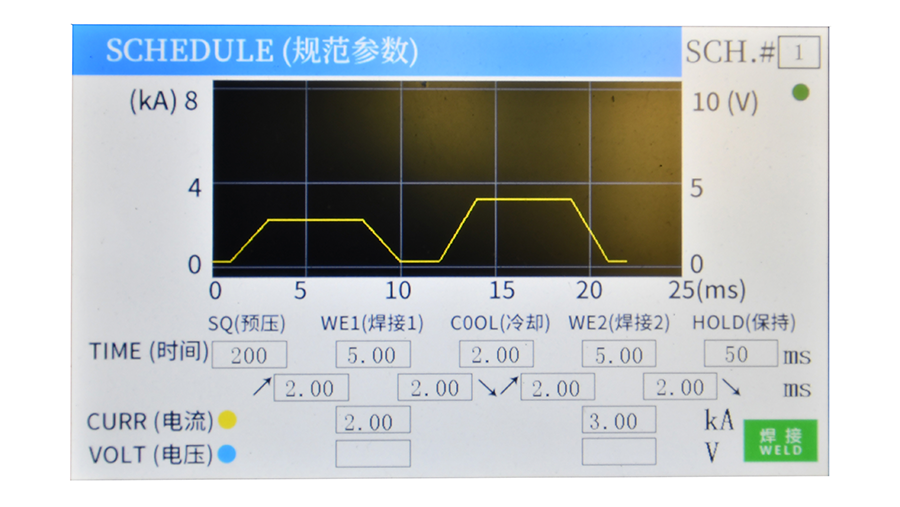

规范参数设置页面:

Specification parameter setting page:
